Zigbee 3.0 controller 12 / 24 volt DC

Zigbee Multi Controller


Smart home. Made simple.

The rangeX Zigbee Multi Controllers make furniture lighting part of the smart home. They are connected on the secondary side of the LED driver and distribute power directly to the luminaires via the integrated 6-way distributor. Control is based on the open wireless standard Zigbee 3.0: the controllers can be paired with common Zigbee bridges – such as the Philips Hue Bridge or Amazon Echo devices with a built-in Zigbee hub – and then operated via app, by voice command with Alexa or in automations.

Two variants cover the common luminaire types: the Multi Controller CCT controls luminaires with adjustable light color – brightness and color temperature from cool white to warm white. The Multi Controller DIM dims single-color luminaires. Both work with 12 or 24 volts, dim via PWM and draw less than 0.2 watts of standby power.

Ready to use even without a smart home: both controllers can be paired and operated directly with the rangeX Zigbee remote control – no additional bridge required.
rangeX Zigbee Multi Controller CCT

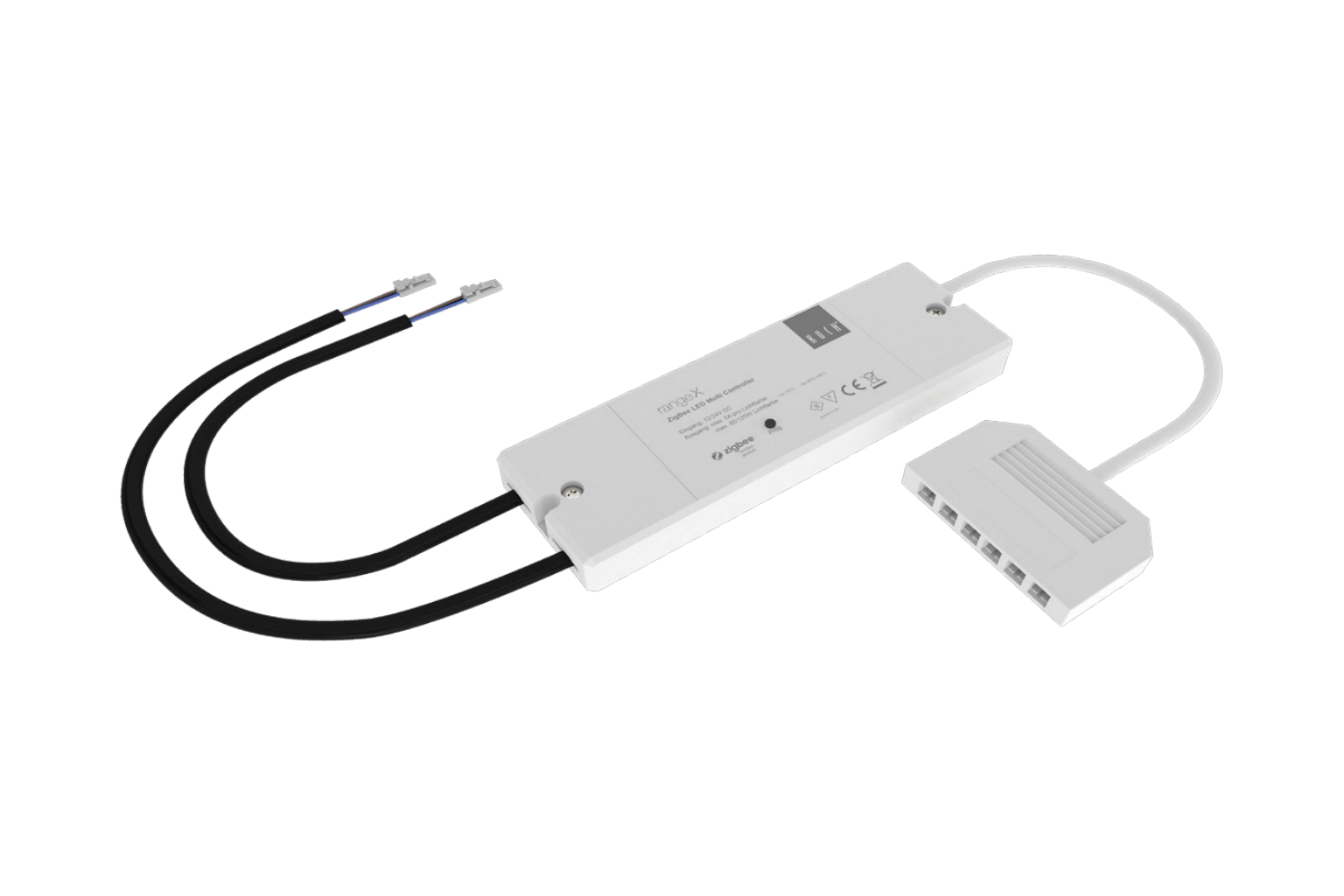

rangeX Zigbee Multi Controller DIM

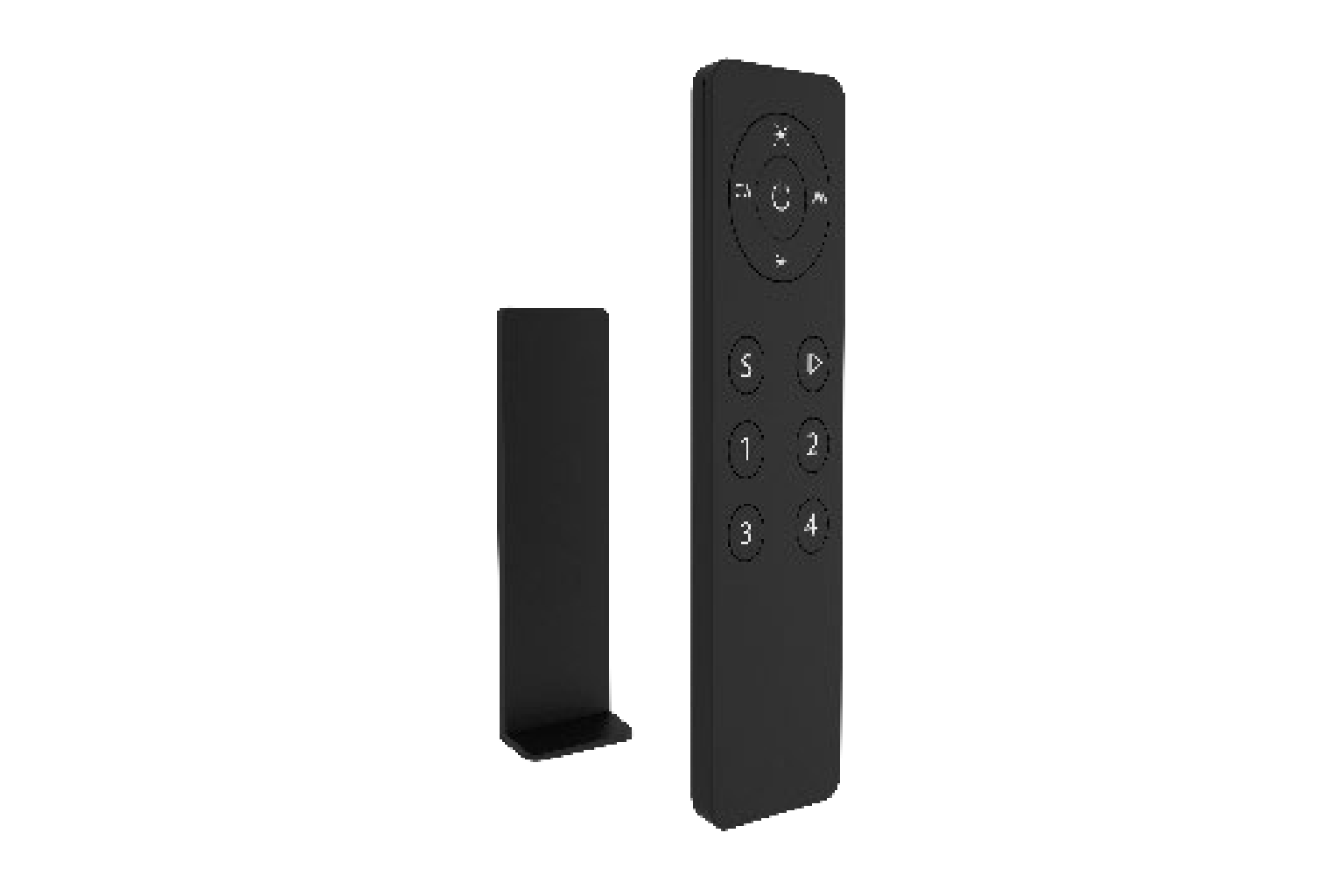

rangeX Zigbee remote control

  • Control

  • • Zigbee bridges, e.g. Philips Hue Bridge – control via app and automations
    • Amazon Echo with built-in Zigbee hub – voice control with Alexa
    • other Zigbee 3.0 bridges and gateways
    • rangeX Zigbee remote control – paired directly, no bridge required

    The available range of functions may vary depending on the bridge or app used.
    Philips Hue, Amazon Alexa and Zigbee are trademarks of their respective owners.

  • Dimensions

  • • Length: 145.0 mm
    • Width: 46.5 mm
    • Height: 16.0 mm
    Further information can be found in our product data sheets.

  • Order information

  • Article Power Article number
    rangeX Zigbee Multi Controller CCT 12 V DC, max. 60 W 2006332
    rangeX Zigbee Multi Controller DIM 12 V DC, max. 48 W 2006321
    Accessories (optional) Article number
    rangeX Zigbee remote control (Handsender) incl. wall holder 2007427

Zigbee Multi Controller – Smart home for your furniture


CCT or DIM, 12 or 24 volts, with a bridge or with the remote control: we support you in selection and sizing and put together luminaires, driver and control for your project from a single source.
Describe your project to us – we will get back to you with a suitable solution.
