rangeX

Radio control unit 12 / 24 volt DC

Smart-Link Receiver


Wirelessly controlled.

The Smart-Link Receiver is a radio control module that is connected directly to the Smart-Link LED Driver and specifically extends its range of functions. By integrating the receiver, the Smart-Link LED Driver becomes a flexibly controllable lighting solution in no time at all.

Thanks to its support for various radio sensors, the Smart-Link Receiver enables convenient, wireless control of the lighting. Depending on the type of sensor used, basic functions such as switching on and off and dimming can be controlled precisely and reliably – by hand movement, touch, door opening or motion.

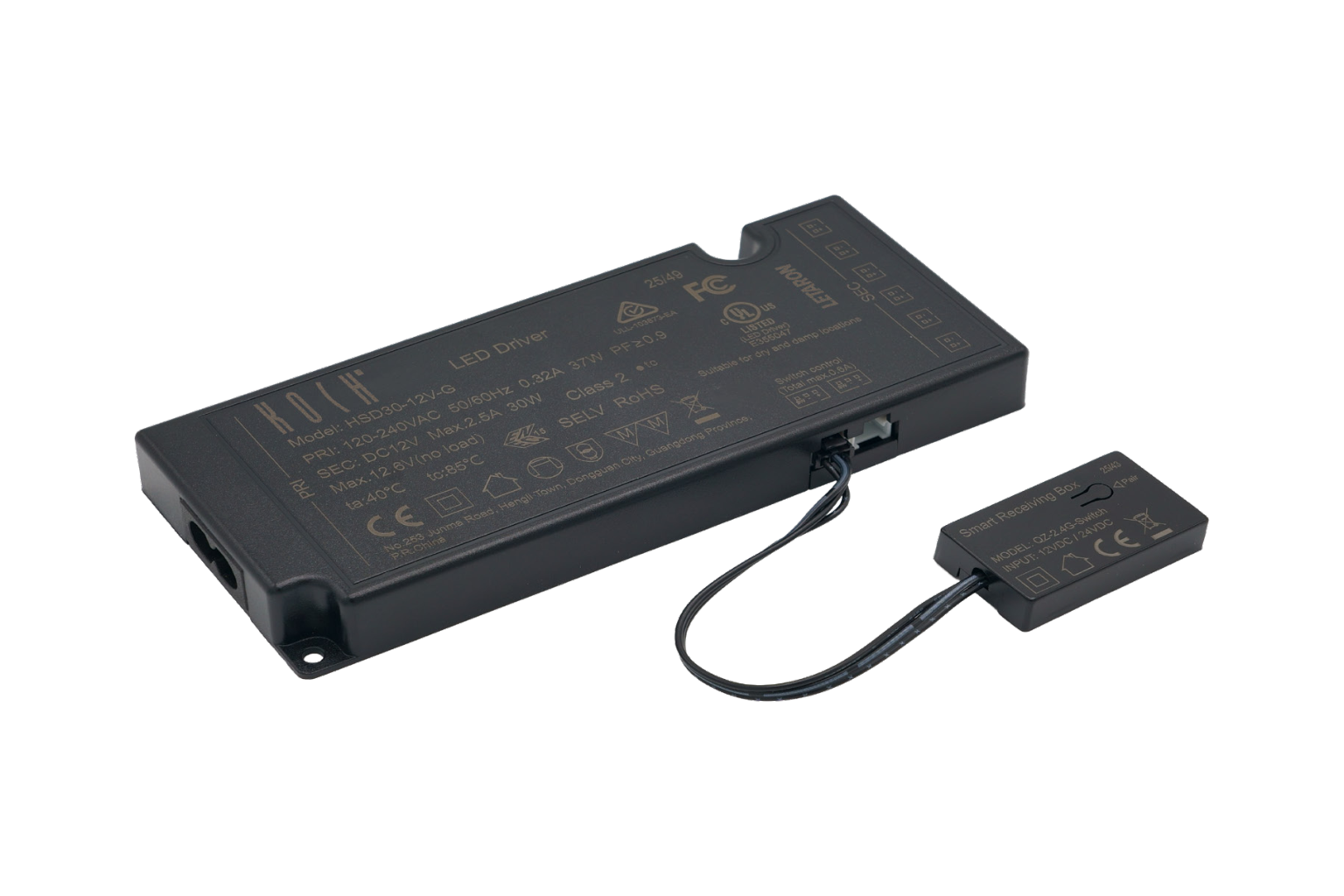

Smart-Link Receiver on the Smart-Link LED Driver
Smart-Link Sensors

  • Product features

  • Voltage: 12 / 24 volt DC
    Radio frequency: 2.4 GHz
    Length: 39.0 mm
    Width: 23.5 mm
    Height: 9.0 mm

  • Control options

  • Sensor Control function Article number
    Smart-Link Wave 2.4 GHz Gesture control (on / off and dimming) 529294
    Smart-Link Door 2.4 GHz IR door sensor (double door, on / off) 529295
    Smart-Link Remote 2.4 GHz Touch sensor (on / off and dimming) 529296
    Smart-Link PIR 2.4 GHz Motion detector (on / off) 529297

    All sensors in detail: Smart-Link Sensors

  • Product information - Download

  • Product data sheet rangeX Smart-Link (PDF, German)

  • Connection diagram

  • Smart-Link Receiver connection diagramThe Smart-Link Receiver is connected to the Switch-Control port of the Smart-Link LED Driver.

  • Order information

  • Article Article number
    Smart-Link Receiver 2.4 GHz 529299
    Matching driver Article number
    Smart-Link Driver 18 watts 507239
    Smart-Link Driver 30 watts 507240
    Smart-Link Driver 60 watts 507241

Smart-Link Receiver – Wireless control for your project


Which sensor suits your application? We will be happy to advise you on the right combination of driver, receiver and sensors.
Describe your project to us – we will get back to you with a suitable solution.
