Kitchen with furniture lighting and rangeX Smart-Link control
rangeX

Wireless sensors 2.4 GHz

Smart-Link Sensors


Intuitive operation.

The Smart-Link Sensors make lighting control easier than ever. The four wireless sensors communicate at 2.4 GHz with the Smart-Link Receiver or the Smart-Link Dimmer and work with an integrated lithium battery – no cable connection to the sensor is required. Charging is conveniently done via USB Type-C.

Mounting is magnetic via a self-adhesive mounting plate: stick on the plate, attach the sensor – done. This allows the sensors to be placed exactly where they are needed: on the furniture door, inside the cabinet or on the wall.
Smart-Link Sensors
Smart-Link Wave
Smart-Link Door
Smart-Link Remote
Smart-Link PIR

  • Smart-Link Wave

  • Smart-Link WaveGesture control (on / off and dimming)
    Detection range: max. 6 cm
    Voltage: 5 volt DC
    Charging port: USB Type-C
    Battery: Lithium
    Frequency: 2.4 GHz
    Mounting: magnetic via mounting plate (self-adhesive)
    Dimensions (L x W x H): 53.5 x 45 x 11.53 mm

  • Smart-Link Door

  • Smart-Link DoorIR door sensor (double door, on / off)
    Detection range: 3 - 10 cm
    Voltage: 5 volt DC
    Charging port: USB Type-C
    Battery: Lithium
    Frequency: 2.4 GHz
    Mounting: magnetic via mounting plate (self-adhesive)
    Dimensions (L x W x H): 53.5 x 45 x 9 mm

  • Mounting

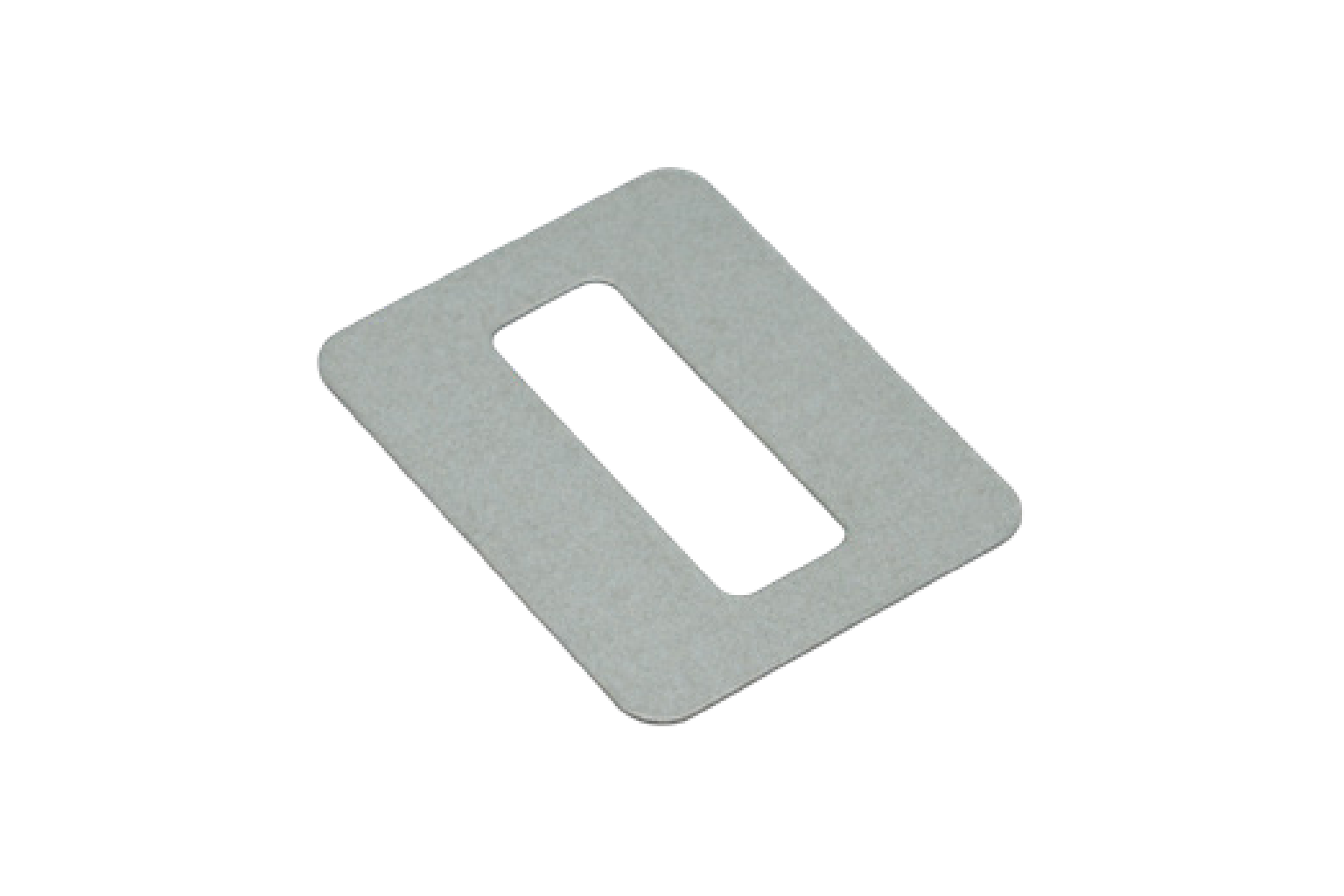

  • Smart-Link sensor with magnetic mounting plateAll Smart-Link Sensors are attached magnetically via a self-adhesive mounting plate and can easily be removed for charging.

  • Product information - Download

  • Product data sheet rangeX Smart-Link (PDF, German)

  • Smart-Link Remote

  • Smart-Link RemoteTouch sensor (on / off and dimming)
    Detection range: Touch
    Voltage: 5 volt DC
    Charging port: USB Type-C
    Battery: Lithium
    Frequency: 2.4 GHz
    Mounting: magnetic via mounting plate (self-adhesive)
    Dimensions (L x W x H): 53.5 x 45 x 9 mm

  • Smart-Link PIR

  • Smart-Link PIRMotion detector (on / off)
    Detection range: 2 m
    Voltage: 5 volt DC
    Charging port: USB Type-C
    Battery: Lithium
    Frequency: 2.4 GHz
    Mounting: magnetic via mounting plate (self-adhesive)
    Dimensions (L x W x H): 53.5 x 45 x 11.53 mm

  • Order information

  • Article Control function Article number
    Smart-Link Wave 2.4 GHz Gesture control (on / off and dimming) 529294
    Smart-Link Door 2.4 GHz IR door sensor (double door, on / off) 529295
    Smart-Link Remote 2.4 GHz Touch sensor (on / off and dimming) 529296
    Smart-Link PIR 2.4 GHz Motion detector (on / off) 529297
    Control modules Article number
    Smart-Link Receiver 2.4 GHz 529299
    Smart-Link Dimmer 2.4 GHz 529298
