Electronic transformer 12 volt DC

Smart-Link LED Driver


Compact. Powerful. Expandable.

The Smart-Link LED Driver is a high-performance electronic transformer developed specifically for international use. Thanks to its slim, compact design – only 17 mm flat – it is suitable for a particularly wide range of applications, from private living spaces to commercial installations. The integrated 6-way distributor allows several luminaires to be connected directly.

A special highlight is its modular expandability: in combination with the Smart-Link Receiver, the driver can be controlled wirelessly via various radio sensors. With the Smart-Link Dimmer, brightness, light color (with CCT luminaires) and light scenes can be adjusted easily via the Smart-Link Knob or by smartphone – for maximum comfort and individual lighting moods.

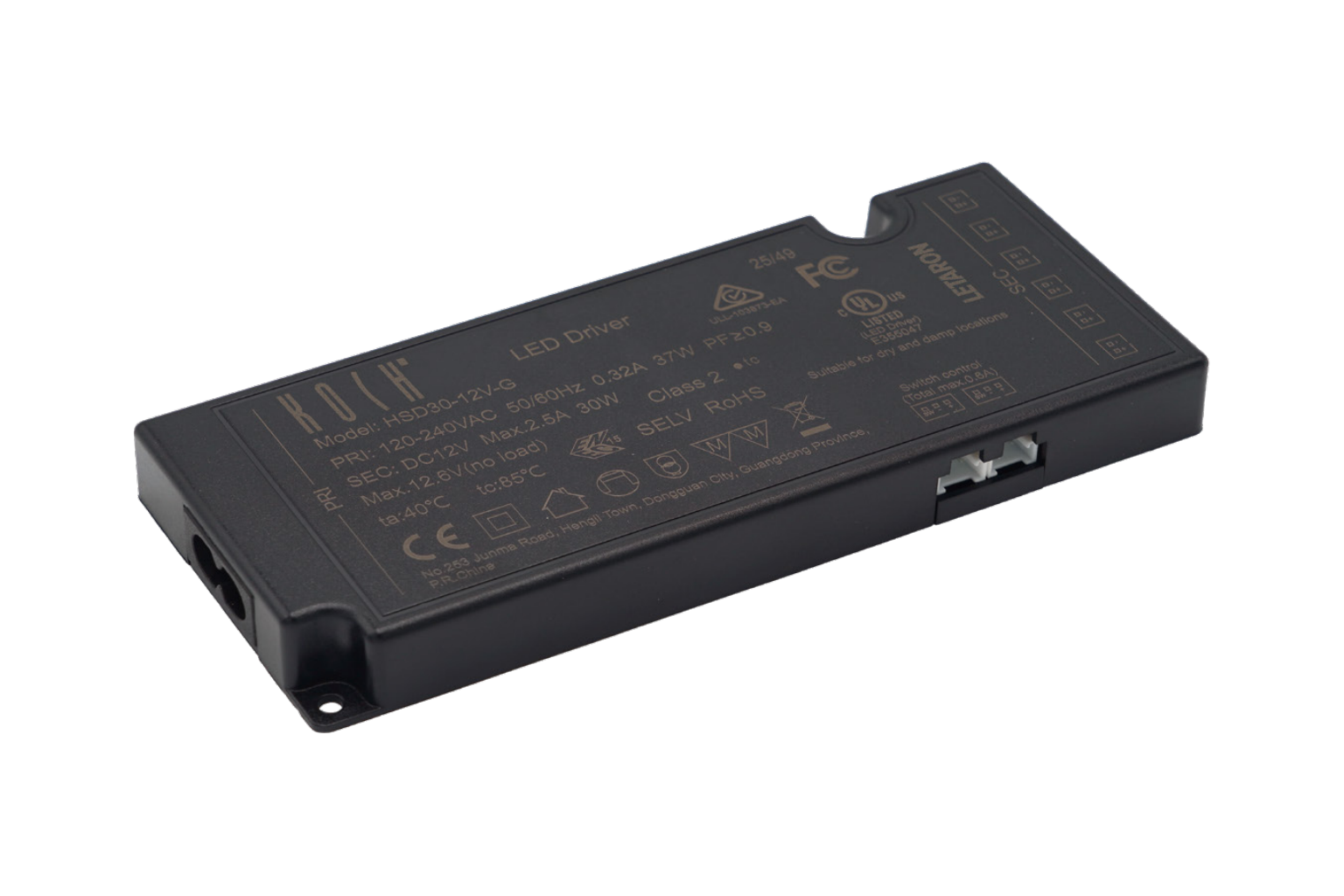

Smart-Link LED Driver

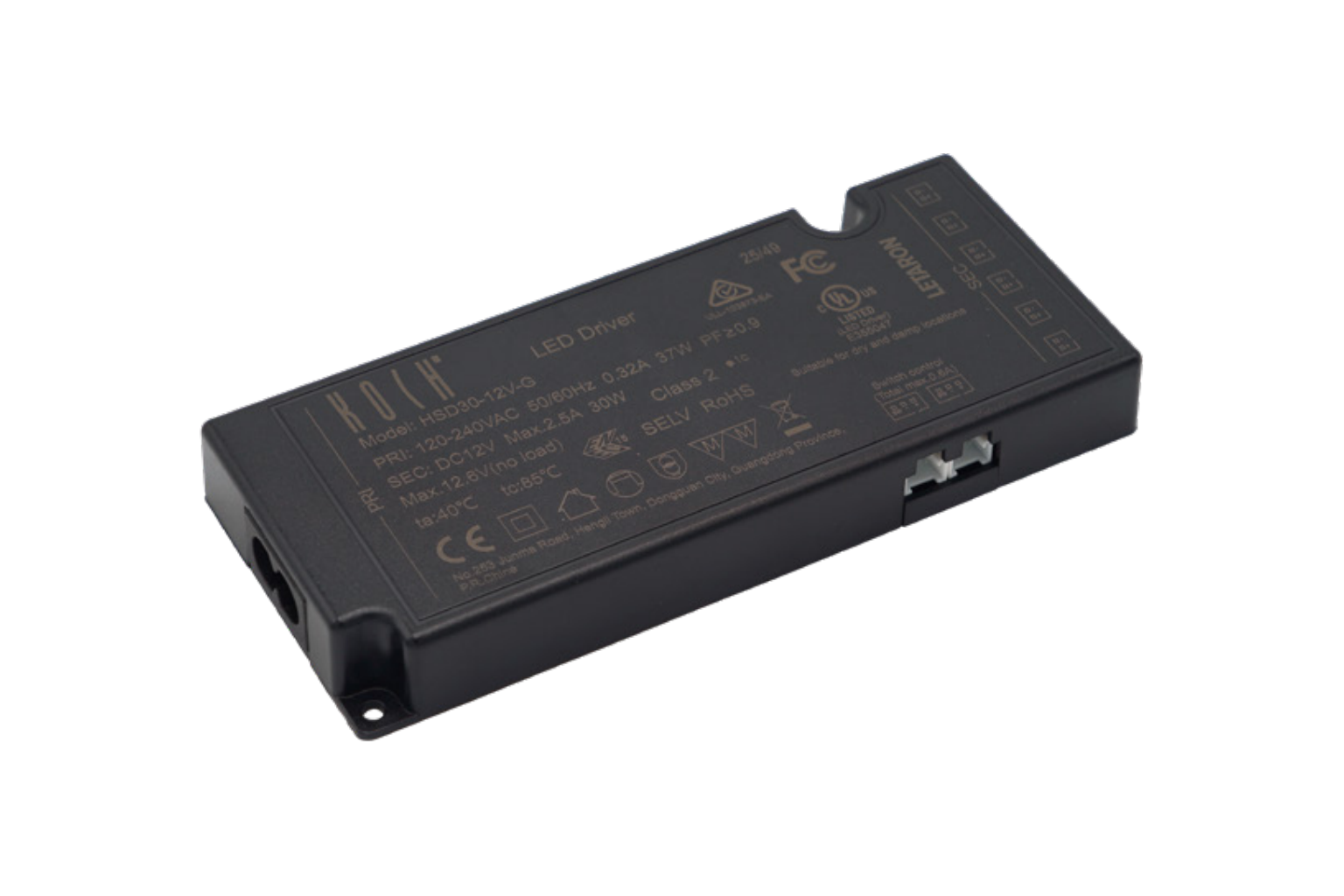

Smart-Link LED Driver

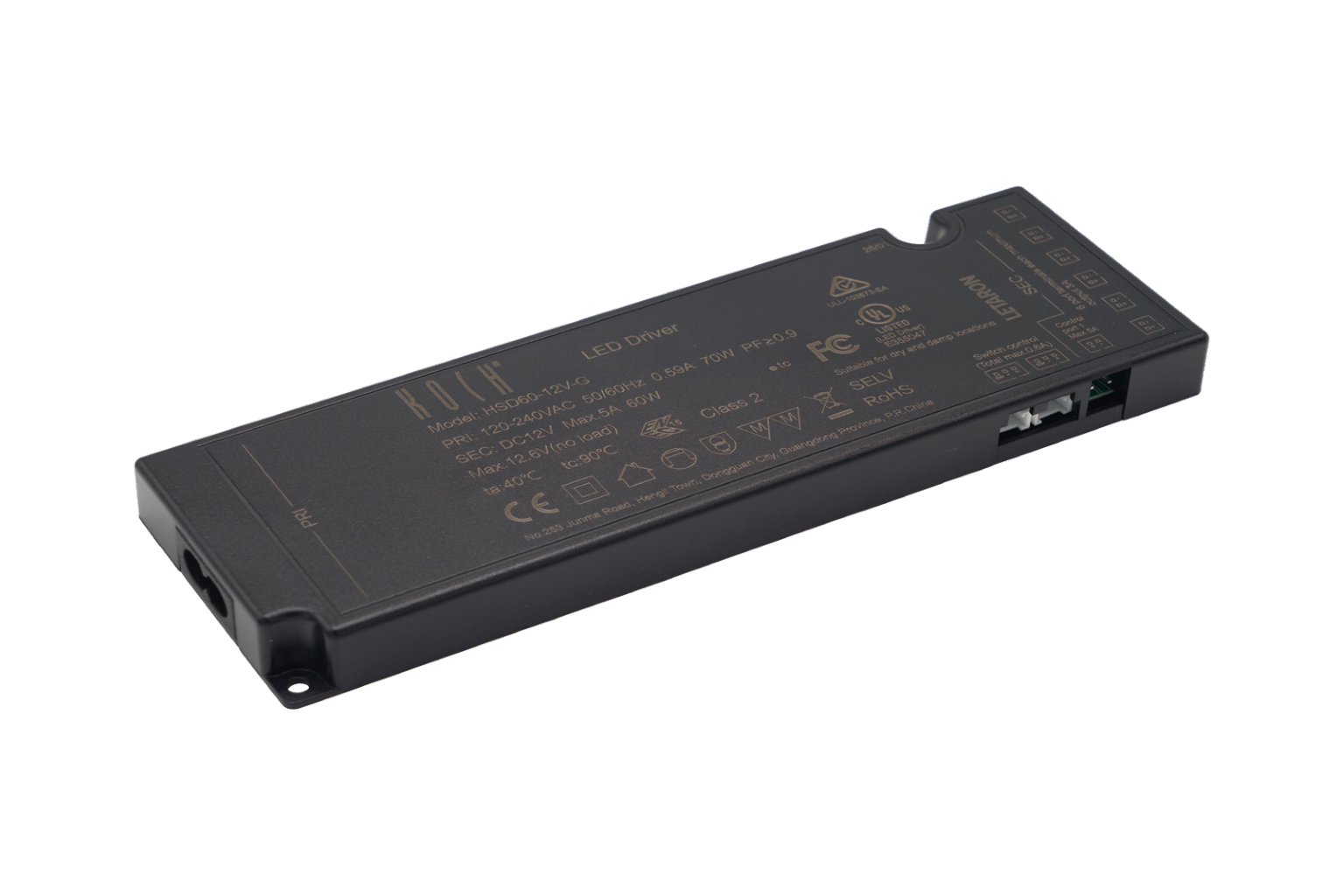

Smart-Link LED Driver
Smart-Link Receiver on the Smart-Link LED Driver

  • Product features

  • Primary voltage: 120 - 240 volts
    Frequency: 50/60 Hz
    Secondary voltage: 12 volt DC
    Power: 18 / 30 / 60 watts
    Lifespan: 30,000 h
    Distributor: 6-way, integrated

  • Scope of delivery

  • Smart-Link Driver connection cable• Smart-Link Driver
    • 2000 mm connection cable with angled Euro plug

  • Product information - Download

  • Product data sheet rangeX Smart-Link (PDF, German)

  • Dimensions

  • Smart-Link Driver dimensions• 18 watts and 30 watts: 141.3 x 60 x 17 mm
    • 60 watts: 181.4 x 60 x 17 mm
    Further dimensions can be found in our product data sheet.

  • Control modules (optional)

  • • Smart-Link Receiver 2.4 GHz – wireless control via radio sensors
    • Smart-Link Dimmer 2.4 GHz – dimming, light color (CCT), light scenes, app control

  • Order information

  • Article Dimensions Article number
    Smart-Link Driver 18 watts 141.3 x 60 x 17 mm 507239
    Smart-Link Driver 30 watts 141.3 x 60 x 17 mm 507240
    Smart-Link Driver 60 watts 181.4 x 60 x 17 mm 507241
    Control modules Article number
    Smart-Link Receiver 2.4 GHz 529299
    Smart-Link Dimmer 2.4 GHz 529298

Smart-Link Driver – The right power for your project


The Smart-Link LED Driver is available in three power classes: 18, 30 and 60 watts. We will be happy to work with you to determine the right power for your luminaires and put together the complete system, including control, for you.
Describe your project to us – we will get back to you with a suitable solution.
