12 / 24 volt LED dimmer (WLAN/IoT)

Smart-Link Dimmer


Light made to measure.

The Smart-Link Dimmer is a powerful single-channel LED dimmer that extends the Smart-Link system with a wide range of control functions. In addition to classic dimming, it also allows the light color of CCT luminaires to be adjusted, ensuring the right lighting mood at all times.

Thanks to integrated WLAN and IoT functions, the Smart-Link Dimmer can be conveniently controlled via app and integrated into modern smart home systems. This enables flexible and intuitive operation – both locally and remotely.

In addition to control via radio sensors, the dimmer can also be operated by cable via the Smart-Link Knob. This combination of smart networking and classic operation offers maximum flexibility for a wide variety of applications.

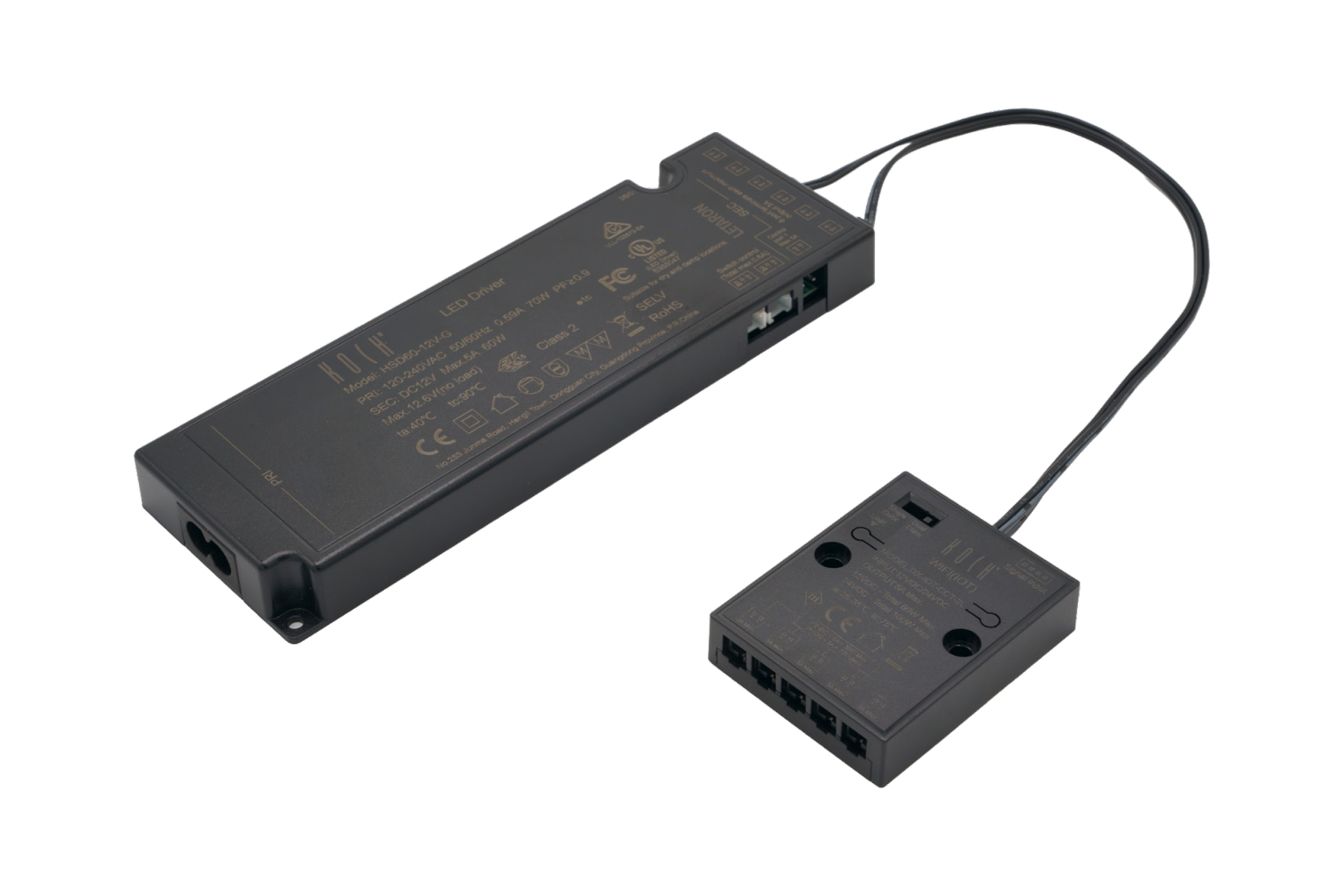

Smart-Link Dimmer

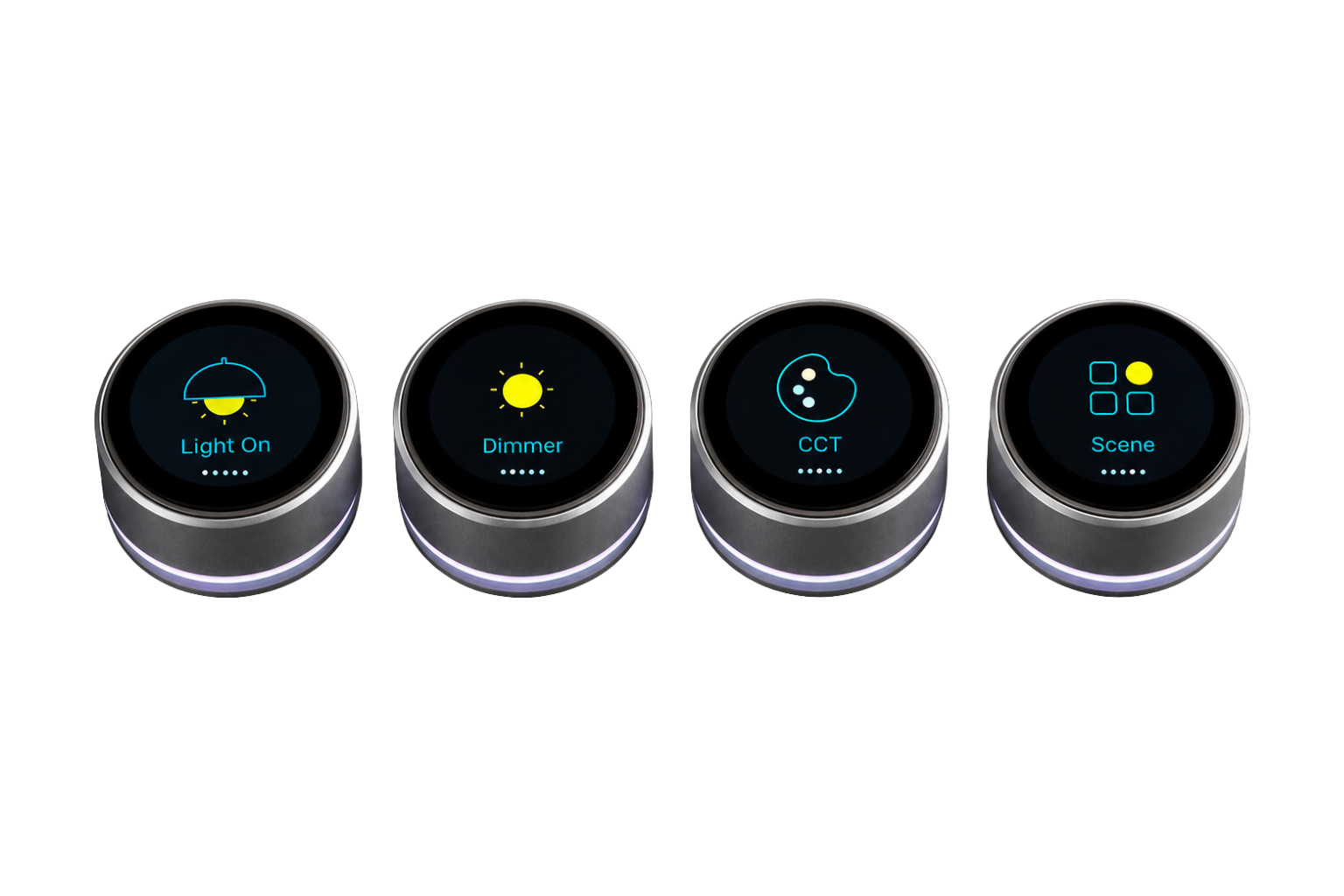

Smart-Link Knob

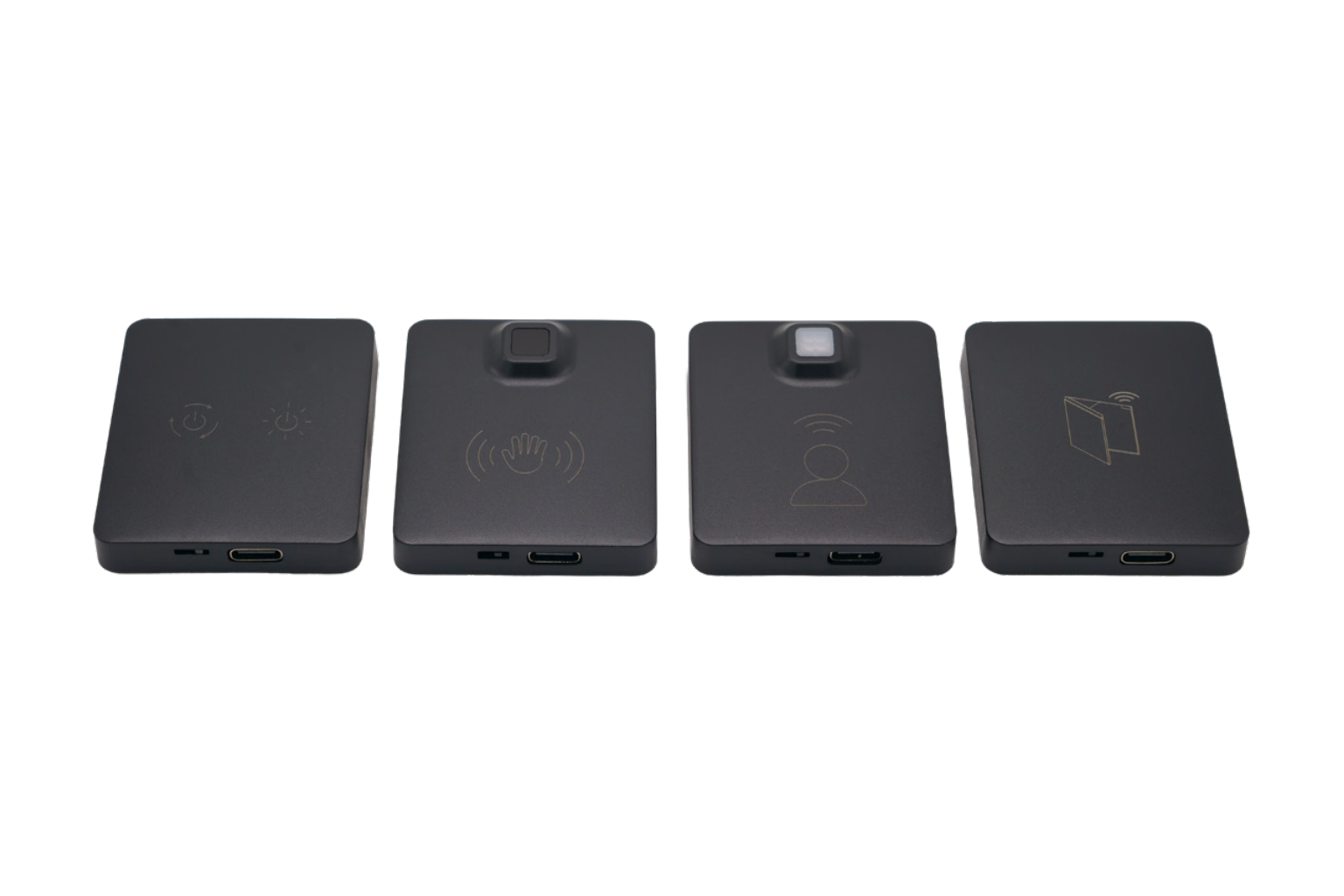

Smart-Link Sensors

  • Product features

  • Voltage: 12 / 24 volt DC
    Radio frequency: 2.4 GHz
    Power: max. 60 watts (max. 36 watts per supply line)
    Distributor: 5-way, integrated
    Control: App (WLAN/IoT), radio sensors, Smart-Link Knob

  • Control options

  • Article Control function Article number
    Smart-Link Wave 2.4 GHz Gesture control (on / off and dimming) 529294
    Smart-Link Door 2.4 GHz IR door sensor (double door, on / off) 529295
    Smart-Link Remote 2.4 GHz Touch sensor (on / off and dimming) 529296
    Smart-Link PIR 2.4 GHz Motion detector (on / off) 529297
    Smart-Link Knob wired (on / off, dimming, color change (CCT) and light scenes) 529300

  • Product information - Download

  • Product data sheet rangeX Smart-Link (PDF, German)

  • Dimensions

  • Smart-Link Dimmer dimensionsFurther dimensions can be found in our product data sheet.

  • Connection diagram

  • Smart-Link Knob connection diagramThe Smart-Link Dimmer is connected between the LED driver and the luminaires; the Smart-Link Knob is connected to the signal input of the dimmer.

  • Order information

  • Article Article number
    Smart-Link Dimmer 2.4 GHz 529298
    Accessories (optional) Article number
    Smart-Link Knob 529300
